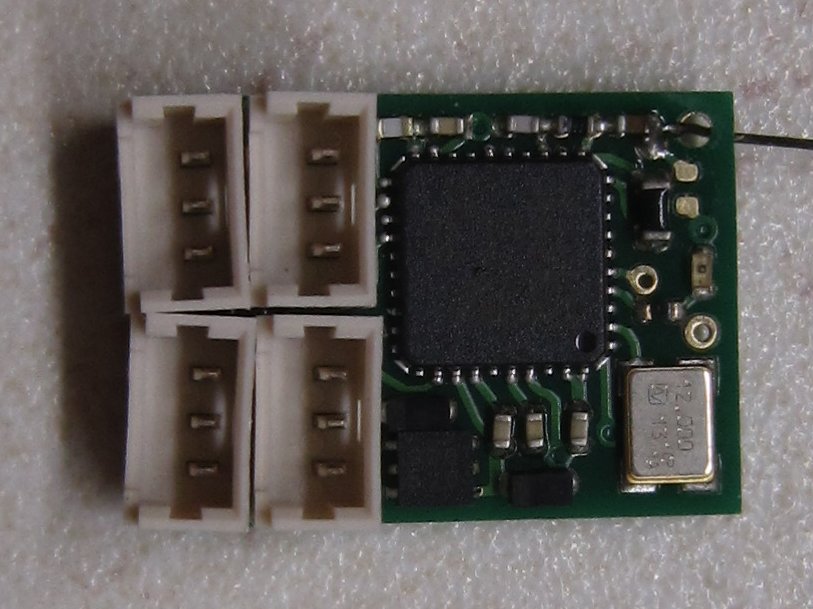

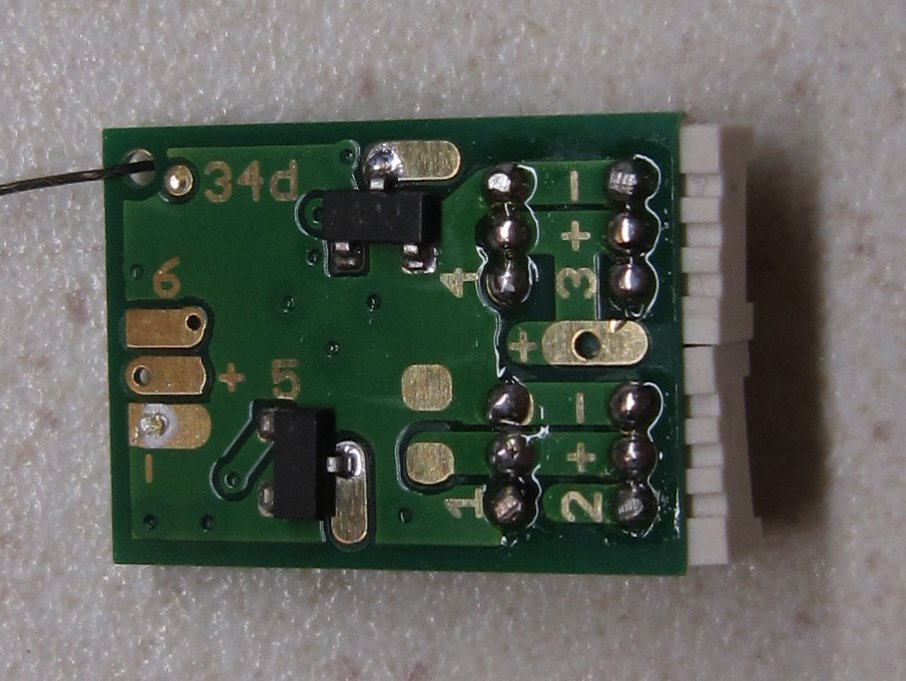

DT Receiver - Rx34d Details



PRODUCT: Rx34d
PCB ID: 34d
SOFTWARE: 3.4.x

DESCRIPTION:
Receiver for 4-5 servos + 2 ESC's with differential thrust steering.

SPECIFICATION:
Outputs: 4-5 Servos, 1024 step
Optional output: 7ch Sum-PPM output on 1 pin
Brushed ESC's: 2, 2A, 64 step, 1-direction (planes), optional 'twin-steer' mix
Size: 11.7 x 16.5mm
Weight: 0.68g
Pad spacing: 1.25mm
Voltage: 3-6v
Modulation: 2.4GHz compatible with 22ms DSM2 Surface and Air
Range: Indoor

INSTRUCTIONS:
v3.4.4
v3.4.3
