DT 2.4GHz Receivers
Receivers compatible with Spektrum DSM2
DT receivers work with Spektrum DSM2 transmitters. Special effort has been made to make them the smallest and lighest available, consume the least current and work with the lowest voltage for 1S lipo operation. Ideal for 1/87, HO and even down to N gauge. Receivers intended for servos can also output 7 channel data on one pin for quadcopters. More detailed specification.
To BUY click here
MICRO RECEIVERS FOR SERVOS:
Click to
enlarge |
Name |
Price |
Weight |
Size |
Connector/Pad spacing |
Brushed
ESC |
PCB |
Channels |
Comment |
|
Rx31
Rx31-F |
£25
£25 |
0.23g |
9.3 x
9.9mm |
1.27mm (0.05") |
(1)
1 |
0.3mm |
4 |
Product page | Instructions
Sum-PPM and Serial options
DSM2 Surface and Air
(1) = not installed |
|
Rx31d
 |
£26 |
0.24g |
9.8 x
10.2mm |
1.27mm (0.05") |
2 |
0.2mm |
4 |
Product page | Instructions
Sum-PPM option
DSM2 Air |
|
Rx32d |
£25 |
0.28g |
11.1 x
12.0mm |
1.27mm (0.05") |
(2) |
0.3mm |
7 |
Product page | Instructions
Sum-PPM and Serial options
DSM2 Surface and Air
(2) = not installed |
|
Rx33 |
£28 |
0.65g |
13.3 x
15.7mm |
1.0mm JST SH (IDC)
-Spektrum & Falcon servos |
1 |
0.4mm |
6
(4 plugs) |
Instructions (v3.2)
Instructions (v3.3)
Sum-PPM and Serial options
DSM2 Surface and Air |
|
Rx34 |
£28 |
0.68g |
11.7 x
16.5mm |
1.25mm MOLEX PICOBLADE
-Futaba/Walkera/HobbyKing |
1 |
0.4mm |
6
(4 plugs) |
Instructions (v3.2)
Instructions (v3.3)
Sum-PPM and Serial options
DSM2 Surface and Air |
|
Rx35-N
Rx35-V |
£25
£28 |
0.35g
0.71g |
12.1 x
17.0mm |
1.5mm JST ZH
-as used on Spektrum AR6300
-Vertical or No connectors |
1 |
0.4mm |
6
(4 plugs) |
Instructions (v3.2)
Instructions (v3.3)
Sum-PPM and Serial options
DSM2 Surface and Air |
|
Rx36-N
Rx36-V
Rx36-H |
£25
£29
£28 |
0.38g
0.75g
1.30g
|
11.6 x
26.3mm
(Hori) |
2.54mm Standard
-Vertical, Horizontal or No connectors |
1 |
0.4mm |
6
(4 plugs) |
Instructions (v3.2)
Instructions (v3.3)
Sum-PPM and Serial options
DSM2 Surface and Air |
|
Rx37
Rx37-F
|
£28
£29 |
0.31g
0.33g |
14.1 x
15.0mm |
Solder points on Rx for servo +/-
10v operation |
(2)
2 |
0.4mm |
7 |
Product page | Instructions
Sum-PPM option
DSM2 Air
(2) = not installed |
MICRO RECEIVERS FOR ACTUATORS: (11 ohm actuators except Rx46)
Click to
enlarge |
Name |
Price |
Weight |
Size |
Pad spacing |
Actuator
outputs |
Brushed
ESC |
Servo
outputs |
PCB |
Comment |
|
Rx41 |
£26 |
0.28g |
9.3 x
10.3mm |
0.8mm (0.031") |
1 |
1 |
(1) |
0.4mm |
Instructions (v3.2)
Instructions (v3.3)
(1) = Servo output for Ch1 (brushless ESC) if Brushed ESC disabled
DSM2 Surface and Air |
|
Rx41d
|
£27 |
0.28g |
10.1 x
10.8mm |
1.27mm (0.05") |
1 |
2 |
3 |
0.2mm |
Product page | Instructions
Sum-PPM option
DSM2 Air |
|
Rx42 |
£27 |
0.32g |
11.1 x
12.3mm |
1.27mm (0.05") |
2 |
1 |
3 |
0.3mm |
Instructions (v3.2)
Instructions (v3.3)
DSM2 Surface and Air |
|
Rx43 |
£28 |
0.35g |
11.1 x
12.3mm |
1.27mm (0.05") |
3 |
1 |
1 |
0.3mm |
Instructions (v3.2)
Instructions (v3.3)
DSM2 Surface and Air |
|
Rx43d
|
£29 |
0.35g |
11.8 x
12.9mm |
1.27mm (0.05") |
3 |
2 |
4 |
0.3mm |
Product page | Instructions
Sum-PPM option
DSM2 Air |
|
Rx46-1
Rx46-2
|
£33
£33 |
0.15g
0.16g |
8.8 x
9.3mm |
1.2mm |
(1) |
1
2 |
3 |
0.1mm |
Product page | Instructions
Sum-PPM option
DSM2 Air
(1) = One 150ohm+ actuator |
|
Rx51-M
Rx51-MC |
£27
£29 |
0.30g
0.42g |
11.0 x
12.3mm |
M=Magnets 5mm
C=Connector
1.27mm (0.05") |
1 |
1 |
1 |
0.3mm |
Instructions (v3.3)
Bahoma receiver
DSM2 Surface and Air |
|
Rx52-M
Rx52-MC |
£28
£31 |
0.31g
0.50g |
12.0 x
13.1mm |
M=Magnets 5mm
C=Connector
1.27mm (0.05") |
2 |
1 |
1 |
0.3mm |
Instructions (v3.3)
Bahoma receiver
DSM2 Surface and Air |
|
Rx53-M
Rx53-MC |
£29
£33 |
0.37g
0.60g |
12.0 x
15.0mm |
M=Magnets 5mm
C=Connector
1.27mm (0.05") |
3 |
1 |
1 |
0.3mm |
Instructions (v3.3)
Bahoma receiver
DSM2 Surface and Air |
RECEIVERS FOR CARS, TRAINS, BOATS, ROBOTS...
Control up to 5 forward/reverse motors, 8 servos and 10 on/off outputs.
'H' outputs = reversable ESC's for brushed motors and actuators
'F' outputs = 1-way ESC's for brushed motors and high current on/off switching
'P' outputs = signal Pads for Servos, Leds and low current switching
ACCESSORIES FOR CARS AND TRAINS:
Click to
enlarge |
Name |
Price |
Description |
|
LED-x-y-z
|
|
Leds for cars
Flexible PCB so can be cut or bent to follow curves
Brightness is suitable for small vehicles / short distance viewing (0603 is brighter than 0402)
0402 leds are 0.8mm wide (each), 0.4mm thick and PCB is 13mm long (0603 1mm wide and thicker)
|
|
|
LED-1-y-z |
£2 |
1 led any colour (White, Red, Orange, Green, Blue, Yellow)
'y' 4=0402, 6=0603
'z' P=Positive+ common, N=Negative- common
|
|
|
LED-2-y-z |
£8 |
Set 2: Orange+White (Indicator + Front headlight) - left & right (4 leds)
'y' 4=0402, 6=0603
'z' P=Positive common, N=Negative common
|
|
|
LED-3-y-z |
£16 |
Set 3: Orange+Red+Red+White (Indicator + Brake + Rear + Reverse) - left & right (8 leds)
(Brake is brighter than Rear)
'y' 4=0402, 6=0603
'z' P=Positive common, N=Negative common
|
|
See below |
MAG1 |
£1.50 |
2-way Magnet connectors for battry connections, charging, etc. |
|
See below |
MAG3 |
£4.50 |
3-way Magnet connectors for train couplings, on/off switch, etc. |
MORE ROBUST RECEIVERS FOR SERVOS (good quality):
Click to
enlarge |
Name |
Price |
Weight |
Size |
Connector/Pad spacing |
Brushed
ESC |
Brushless
Output |
PCB/
Heatshrink |
Channels |
Comment |
|
Rx27-N
Rx27-V
Rx27-H
Rx27-HU |
£25
£28
£28
£30 |
0.7g
1.8g
2.1g
2.6g |
14.5 x
29.0mm
(Hori) |
2.54mm Standard
-Vertical, Horizontal or No connectors
U=150mm coax aerial
-available with all connector options |
No |
Yes |
0.8mm
Yes |
6
(5 plugs normally)
(6th on request +£1) |
Instructions (v2.6)
Same as Rx22 but has provision for 6th connector and coax aerial |
|
Rx73-H
Rx73-HU |
£30
£34 |
3.6g
4.0g |
18.0 x
36.0mm
(Hori) |
2.54mm Standard
-Vertical, Horizontal or No connectors
U=150mm coax aerial
-available with all connector options |
No |
Yes |
0.8mm
Yes |
7 |
Instructions (v2.6)
Antenna diversity
Made to order |
|
Rx71-N
Rx71-V
Rx71-H |
£30
£32
£32 |
1.1g
2.4g
2.8g |
17.0 x
36.0mm
(Hori) |
2.54mm Standard
-Vertical, Horizontal or No connectors |
No |
Yes |
0.8mm
Yes |
6 |
Instructions (v2.5)
Instructions (v2.6)
Antenna diversity
No stock |
|
Rx72-N
Rx72-V
Rx72-H |
£32
£33
£34 |
2.2g
?
3.8g |
22.0 x
36.0mm
(Hori) |
2.54mm Standard
-Vertical, Horizontal or No connectors |
No |
Yes |
0.8mm
Yes |
7
(8 plugs) |
Instructions (v2.5)
Instructions (v2.6)
Antenna diversity
No stock |
CONNECTORS:
Click to
enlarge |
Name |
Price |
Weight |
Size |
Description |
Comment |
|
MAG1 |
£1.50
(each) |
0.073g |
4 x 12mm |
Magnet connector board (Bahoma)
2mm diameter magnets with 5mm spacing |
One board with 2 magnets soldered on
Supplied with short lengths of 2.4mm heat shrink
The magnets have good 'holding' strength and act as electrical connectors
Use as battery connector, charge lead, etc. |
|
MAG3
|
£4.50
(1 pair) |
0.273g
(1 pair) |
9.5 x 9.5 x 1.4mm
(each) |
Magnet connector board
2mm diameter magnets with 3mm spacing |
Two boards with 3 magnets soldered on each
Photo shows connected 'overlapping' and 'end to end'
The magnets have good 'holding' strength and act as electrical connectors
Use as servo connector, on/off/charge mechanism, train coupling, etc. |
|
S1.0
P1.0
S1.27
P1.27 |
£2.50
(5 pack) |
0.030g (1.0mm)
0.105g (1.27mm) |
- |
1.0mm and 1.27mm plugs (P) and sockets (S)
Price is per 'type' (5 plugs or 5 sockets)
Weights are for 1 plug and 1 socket (pair) |
1.0mm plugs are 0.3mm square pin
1.27mm plugs are 0.44mm round pin |
|
|
|
£1
(each) |
|
|
Connectors fitted to receivers |
|

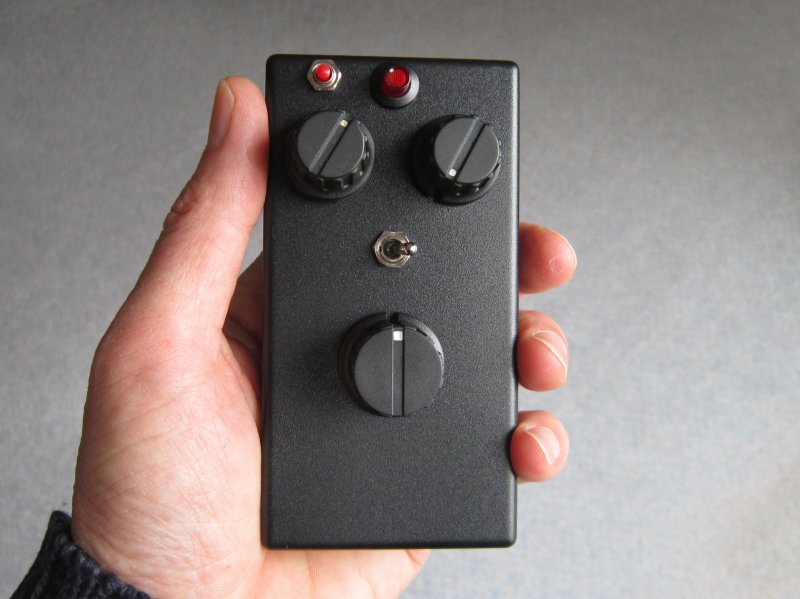

TRANSMITTERS:
Click to
enlarge |
Name |
Price |
Size |
Description |
|
Tx1-M |
£15 |
18 x 40mm |
Simple short-range transmitter that works with all DSM2 receivers. As a module it allows up to 7-channels to be controlled with a conventional transmitter, flight sims and specialised circuits. This version requires a PPM input and some DIY skills to install. v114 has JR, Futaba and Multiplex channel options.
The 'J' and 'M' versions can do the same things with appropriate inputs as described in the Product page
|
|
Tx1-J |
£20 |
18 x 40mm |
Simple short-range transmitter that works with all DSM2 receivers. The 'J' version has a Joystick and operates as a stand-alone 2-channel transmitter. It is unique in that you can hold the transmitter and control a model with one hand. It is suitable for stable models. It would typically be used with Throttle and Rudder but could control things like a free-flight dethermalise servo. It has two 'car' modes with forward/reverse throttle control.
The 'J' and 'M' versions can do the same things with appropriate inputs as described in the instructions: Product page
|
DSM2ir:
Receivers to control IR helicopters (prototype stage still)
MORE RECEIVER INFO:
Detailed specifications
Old designs
FREE FLIGHT TIMERS:
Prototype timers
To BUY click here
